12.0V

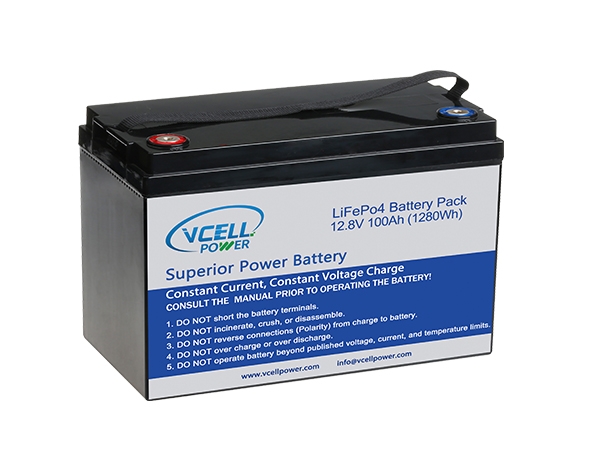

12.8V 100AH LiFePo4 Battery Pack With BMS Built

Model: VP-LF12-100
Nominal Voltage: 12.8V
Nominal Capacity: 100.0Ah
Charge Cut-Off Voltage: 14.6±0.2V
Discharge Cut-Off Voltage: 10.0±0.2V
Max Charge Current: 100.0A
Max Continuous Discharge Current: 100.0A
Peak Discharge Current: 200.0A(1-3S)
Charge Temperature Range: 0~45℃
Discharge Temperature Range: -20~65℃
Storage Temperature: -20°C~50°C
Design Life: ≥10 Years
Cycle Life: ≥4000 @100% DOD, 0.5C Charge/Discharge
Dimension: 328*172*215*220mm
Weight: 10.5Kg
Terminal: M8
IP Level: IP55
Send Inquiry
    Features:
    1.Longer storage life
    2.Light weight and higher energy density
    3.It can be built with PCM/BMS for over charge, over discharge, over current. temperature, short circuit protection......
    4.Perfect for building up battery pack for medical equipment back-up or EPS emergency power
    5.Supply which requires compact size and lightweight
