Semi-Solid State Battery

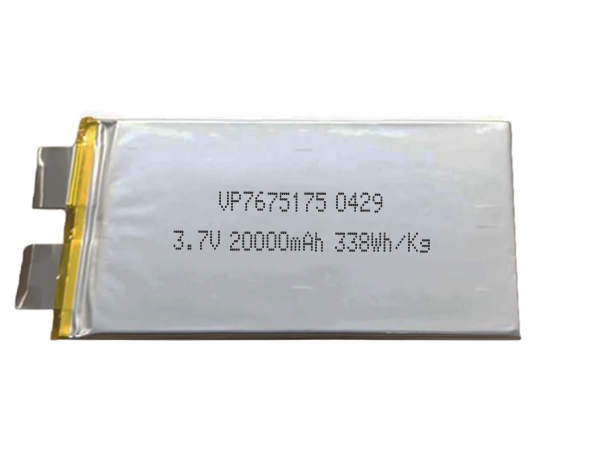

7675175 3.7V 20000mAh Semi Solid State LiPO Battery

Battery Brand: VCELL/OEM
Battery Type: Semi-Solid State LiPO Battery
Model: VP7675175H
Nominal Voltage: 3.7V
Nominal Capacity: 20000mAh
Charge Cut-Off Voltage: 4.25V
Discharge Cut-Off Voltage: 2.5V
Standard charge current: 0.2C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Energy Density: 338wh/kg
Charge temperature: 0~45℃
Discharge temperature: -20~55℃
Storage Temperature: 20±5℃
Size(T*W*L): 7.6*75*175mm
Weight: 219.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of Vcell 7675175 3.7v 20000mAh lipo rechargeable battery
    1. Boasts a capacity of up to 20000 mAh and an ultra-high energy density of 338 Wh/kg; within the same physical volume, it stores over 30% more power than standard liquid lithium-ion batteries, ensuring exceptionally long-lasting endurance.
    2. Features a compact, flat-profile design that is ideally suited for integration into large-screen displays or electronic devices with limited internal space.
    3. Utilizes a hybrid solid-liquid electrolyte system that is non-flammable, non-explosive, and resistant to puncture; the composite-coated separator protects against short circuits and overcharging, ensuring safety and reliability.
    4. Constructed using a soft-pack laminated process, it weighs approximately 27% less than liquid lithium-ion batteries of equivalent capacity, making it an ideal choice for weight-sensitive applications such as drones and portable electronic devices.
    The application of Vcell 7675175 3.7v 20000mAh lipo rechargeable battery
    Agricultural drones, surveying drones, inspection drones, aerial photography drones, etc.
