24.0V

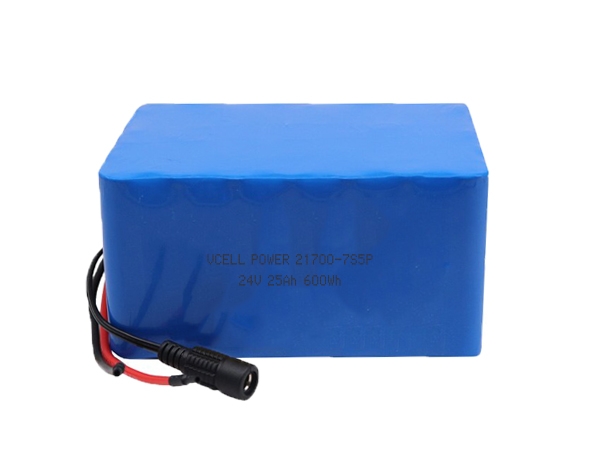

24V 25Ah 21700 Lithium Ion Rechargeable Battery Pack With BMS

Battery Brand: VCELL/OEM
Battery Type: Lithium Ion Battery(NCM)
Model: NCM21700-24-25
Nominal Voltage: 24V
Nominal Capacity: 25Ah
Charge Cut-Off Voltage: 29.4V
Discharge Cut-Off Voltage: 19.6V
Standard charge current: 0.2C
Max charge current: 1.0C
Max continuous discharge current: 1.5C
Peak discharge current: 3C (<3S )
Size(L*W*H): 160*115*79mm Max Or Customized
Charging temperature: 0~45℃
Discharge temperature: -20~60℃
Weight: 2.7Kg Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of 24v 25ah li-ion battery:
    1. Utilizing high-energy-density 21700 battery cells, the assembled battery pack is more compact and lighter.
    2. High-capacity design, long endurance, and meet the long-term operation requirements of high-power devices.
    3. Stable voltage output ensures device performance.
    4. Built-in battery management system (BMS) provides overcharge, over-discharge, overcurrent, and short-circuit protection.
    5. Over 700 cycle life with no memory effect, durable, and cost-effective.
    6. Customization available.
    7. Intelligent BMS with optional communication protocols such as SMBUS/CANBUS/RS232, RS485/I2C/Bluetooth.
    The applications of 24v 25ah li-ion battery:
    Electric dirt bike, electric car for kids, electric scooters, electric wheelchairs, portable power supplies, camping power supplies, UPS, robots, automated guided vehicles (AGVs), testing equipment, portable medical devices, monitoring equipment, stage lighting, etc.
