3.7V

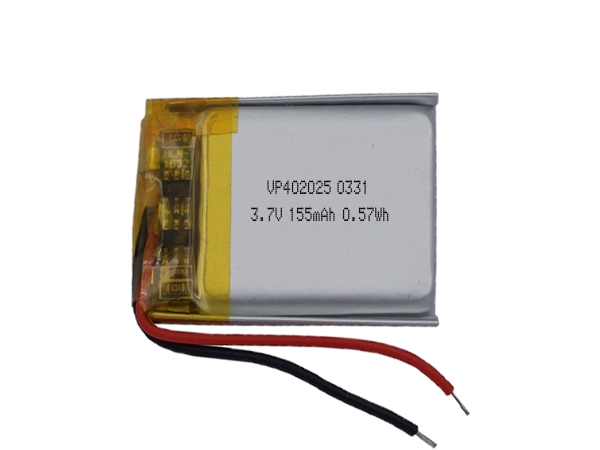

402025 3.7V 155mAh Lithium Polymer Battery For Electronic

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP402025
Nominal Voltage: 3.7V
Nominal Capacity: 155mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 4.2*20.5*27.5mm Max, with PCM
Weight: 6.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of Vcell 402025 3.7v 155mah Lithium polymer battery
    1. With a thickness of just 4 mm, it is slim and lightweight, allowing for easy integration into ultra-thin devices.
    2. Extremely lightweight, it adds no noticeable bulk or weight to the device.
    3. Encased in a soft-pack aluminum-plastic film, it presents a lower risk of leakage and thermal runaway, ensuring safety and reliability.
    4. Within such a compact form factor, it delivers a capacity of 155 mAh, providing ample battery life for low-power devices.
    5. Supports the addition of a Protection Circuit Module (PCM), NTC temperature sensors, connectors, and other components to meet diverse application requirements.
    6. Environmentally friendly and non-polluting, it complies with international certification standards such as RoHS and CE.
    The applications of Vcell 402025 3.7v 155mah Lithium polymer battery
    Bluetooth headphone charging cases, miniature speakers, Bluetooth remote controls, micro-sensors, portable voice recorders, wireless mice, NFC card readers, portable blood glucose meters, heart rate monitoring patches, small-scale physiotherapy devices, etc.
