3.7V Cylindrical Cell

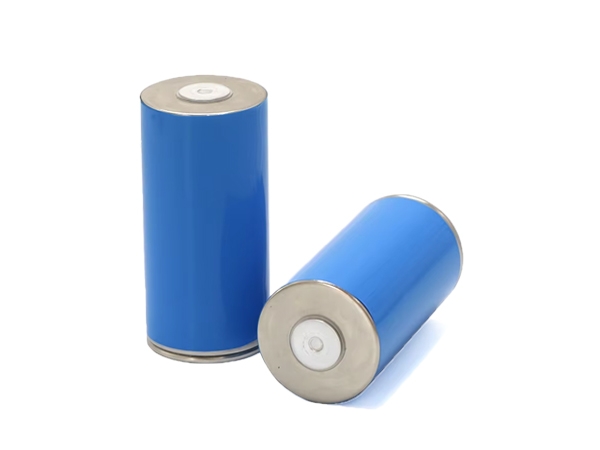

INR46950 4695E 3.7V 32.5Ah Cylindrical Lithium Ion Rechargeable Battery

Battery Type: Lithium Ion Battery(NCM)
Battery Brand: VCELL/OEM
Model: INR46950
Nominal Voltage: 3.68V (0.33C)/ 3.62V (1C)
Nominal Capacity: 32.5Ah
Charge Cut-Off Voltage: 4.25V
Discharge Cut-Off Voltage: 2.8V
Energy @ 4.25-2.8V 0.33C& 1C: ≥119Wh(0.33C)
ACR@30% SOC: ≦1.5mΩ
DCR@50% SOC, 2C,10s: ≦2.8mΩ
Power (50% SOC & 10s): ≧700W
Max charge current: 2.6C
Max discharge current: 5.0C
Charge temperature: 0~45℃
Discharge temperature: -35~60℃
Size(D*H): 46.1*96.6mm Max
Weight: 421g Approx
Fast charging life (10%~80%SOC.35°C,3N3F): 20mim,step charge,1200cycles, 80%SOH
Nomal cycle life (0.5C, 90%DOD.25°C): 2000cycles,80%SOH
Send Inquiry
    The features of 46950 lithium ion battery
    1. Long cycle life, suitable for long-term use, and high cost-effectiveness.
    2. High energy density and stable performance, suitable for high power and long-endurance needs.
    3. Flexible battery module combination based on project requirements.
    4. No memory effect, high energy conversion efficiency, and compliance with environmental standards.
    The application of 46950 lithium ion battery
    Electric transportation: electric vehicles, electric motorcycles, electric bicycles, etc.
    Energy storage systems: photovoltaic energy storage, home/commercial energy storage, power grids, etc.
    Industrial equipment: AGV robots, power tools, drones, etc.
    Medical equipment: portable medical equipment, emergency equipment, etc.
    Backup power: UPS, communication base stations, uninterruptible power systems, etc.
