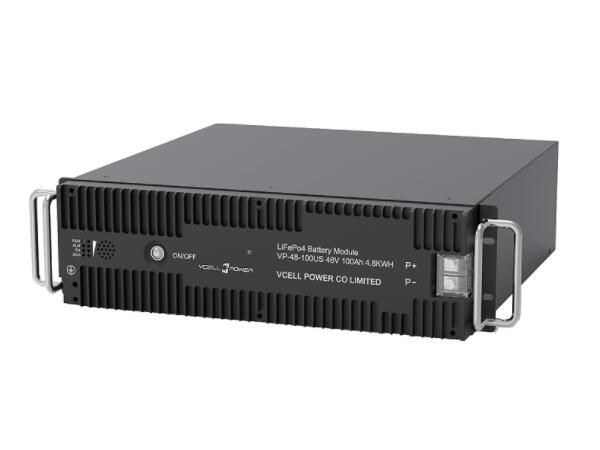

Smart 48V 100Ah LiFePo4 Battery Module, Mixed Use With Acid Battery-VCELL POWER CO.,LIMITED

Products

	0755-23722075
	0755-86569986
	info@vcellpower.com
	ShenZhen Office: Rm B-308, PengChengZhongJun Compass Innovation Industrial Park, Bao An District, ShenZhen, PR.China 518100
	WuHan Office: D06, 30th Floor, Mujin Starlight, No. 356 Jiangcheng Avenue, Hanyang District, Wuhan City, Hubei Province. P.R China 430000
	Factory Address: No.16 xinFeng Rd, ChangLong, HuangJiang District.DongGuan, GuangDong PR, China

< >

Battery type: Lifepo4 Battery

Battery model: VP-LF48-100US

Nominal Voltage: 48V

Rated Capacity (5HR): 100 Ah

Charging Limited Voltage: 54V

Discharge Ending Voltage: 40.5V

Max. Charging Current: 100A

Max. Continuous Discharging Current: 100 A

Weight: Approx. 42 Kg

Display: Without a display screen

Parallel Connection: Parallel connection is optional (up to 16P). When paralleling, the max. charging current is 20A

Dimensions (W *D*H) mm (inches): 442 (19.40″) * 450 (17.72″) * 132 (5.20″)

Containing Cell: 3.2V 50Ah

Design life: More than 15 years

Cycle Life: More than 3500 cycles at 100% DOD

IP Class: IP30

Outer Package Material: Black aluminum and sheet metal case (battery rack or cabinet is optional)

Operating Temperature: Charging: 0 to +45C; Discharging: -20 to +60C; Storage: -20 to +60C

1. Good consistency and long cycle life
2. Multiple protection, durability, and high reliability
3. Modular design, easy for installation and maintenance
4. Adapt to harsh environments, such as high altitude, and high/low-temperature applications
5. Strong compatibility, and seamless connection with switching power supply, UPS, and other equipment
6. Used in various communication base stations, ETC communication base stations, and renewable energy systems.
7. Our batteries are equipped with high-performance BMS for the effective management of battery modules
