7.4V

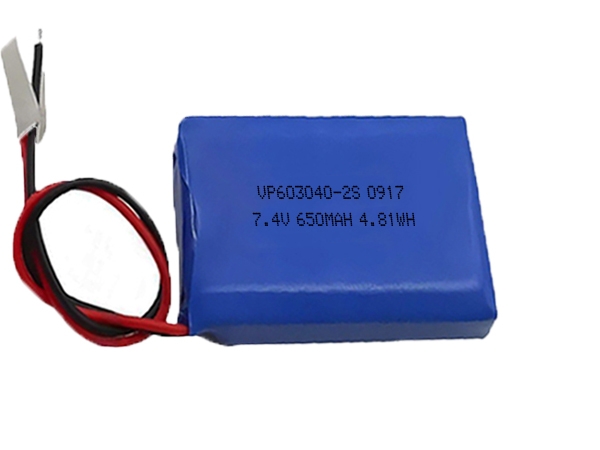

123040 7.4V 650mAh LiPo Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP603040-2S
Nominal Voltage: 7.4V
Nominal Capacity: 650mAh
Charge Cut-Off Voltage: 8.4V
Discharge Cut-Off Voltage: 5.5V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 12.2*30.5*42.5mm Max
Weight: 45.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of 603040-2S 7.4v 650mAh LiPo battery
    1. Cycle life exceeding 500 cycles, highly durable.
    2. High energy density, compact size, and lightweight; ideal for space-constrained portable devices.
    3. Utilizes aluminum-laminated film pouch packaging; explosion-proof and highly safe, meeting market standards for consumer electronics.
    4. Equipped with a PCM to protect against overcharge, over-discharge, overcurrent, and short circuits, enhancing device safety.
    5. Supports certifications such as CE, RoHS, UN38.3, and UL.
    6. Customizable options are available for wire length, connector types, NTC thermistors, and casings.
    Applications for 603040-2S 7.4v 650mAh LiPo battery
    Small RC cars, micro-drones, RC boats, handheld massagers, portable blood pressure monitors, electric facial cleansing devices, smart door locks, fingerprint locks, portable surveillance cameras, portable POS terminals, micro-projectors, walkie-talkies, etc.
