3.7V

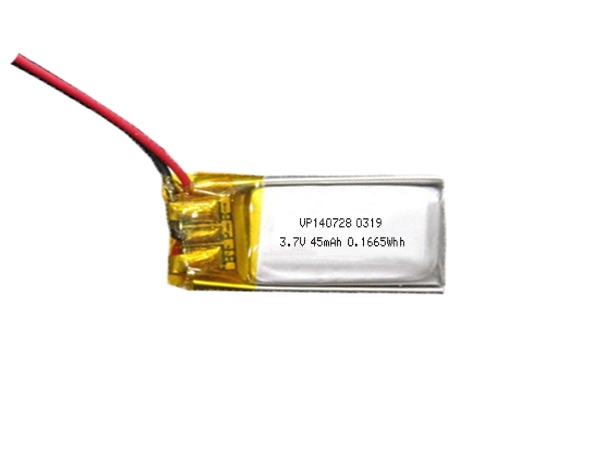

140728 3.7V 45mAh Small Lithium Polymer Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP140728
Nominal Voltage: 3.7V
Nominal Capacity: 45mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 1.6*7.5*30.5mm Max
Weight: 2.0g Approx
Cycle life: >700 cycles at 80%DOD
Service life: >5 years
Wire/Connector: TBD
Send Inquiry
    The features of Vcell 140728 3.7v 45mah small lithium polymer battery
    1. 1.6 × 7.5 × 30.5 mm (T × W × L, including PCM), exceptionally thin, lightweight, and compact, making it ideally suited for miniature devices with extremely strict space constraints.
    2. Weighing only approximately 2g, its lightweight design enhances user comfort for wearable devices or improves the portability of electronic equipment.
    3. Boasts a cycle life of over 500 cycles, ensuring long-term durability and cost-effectiveness.
    4. Utilizes gel or solid-state electrolytes, significantly reducing the risk of explosions and ensuring a high level of safety.
    5. Features a built-in PCM that provides comprehensive protection against overcharging, over-discharging, over-currents, and short circuits.
    The applications of Vcell 140728 3.7v 45mah small lithium polymer battery
     Bluetooth headsets, beauty instruments, GPS trackers, smart wristbands, watches, mini voice recorders, micro cameras, and other electronic devices.
