3.7V

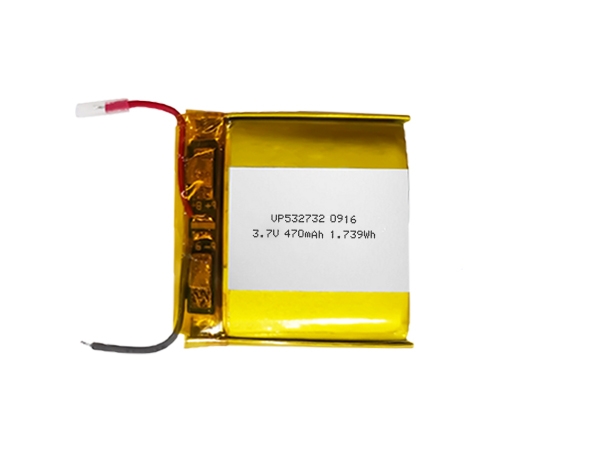

532732 3.7V 470mAh LiPo Rechargeable Battery With PCM

Battery Type: Lithium Polymer Battery
Battery Brand: VCELL/OEM
Model: VP532732
Nominal Voltage: 3.7V
Nominal Capacity: 470mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 5.5*27.5*34.5mm Max, With PCM
Weight: 10.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of 532732 lipo battery
    1. Using aluminum-plastic composite film flexible packaging structure, excellent safety performance
    2. High energy density, long endurance
    3. Lightweight and portable design, suitable for wearable and portable devices
    4. Built-in PCM effectively prevents battery overcharging, over-discharging, and short circuits, ensuring safety and reliability.
    5. More than 700 cycle tife, no memory effect, built to last, cost-effective
    6. Flexible customization
    The application of 532732 lipo battery
    Smart wearable devices: smart bracelets, watches, fitness trackers, etc.
    Bluetooth products: headphones, speakers, trackers, etc.
    Electronic medical devices: portable testers, health monitoring devices, etc.
    Mobile payment and terminal devices: POS terminals, barcode scanners, handheld terminals, etc.
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo batteries (1.5mm), high-temperature LiPo batteries, low-temperature LiPo batteries, and special shape LiPo batteries (round), welcome to inquiry!
